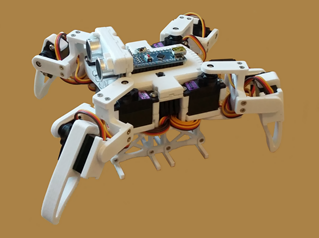

I’ve always been fascinated by robots that can walk and the coding challenges that creating one presents. So here I have designed and coded a Quadruped critter robot, which you too can make with a 3-D printer and an Arduino NANO microcontroller.

Quadruped Video Slide1

Project Overview

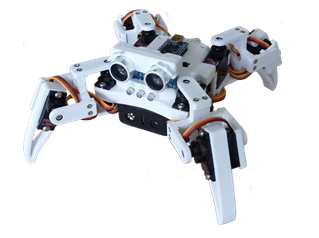

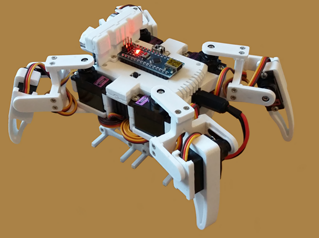

This robot uses eight servo motors for rapid movement, two for each leg. It is based on a modified open source design you can find here on Thingiverse, under the banner of Mini Quadruped, and all credit to Jason Workshop for publishing it. I modified and added to their STL files to suit the servo motors I selected and additional components, including an ultrasonic sensor, infra-red sensor, three LEDs and a button switch, in the models I have provided below. These components add a great deal of functionality, making this robot an ideal demonstrator for STEM students.

The robot code has four modes of operation, which demonstrate its ability to walk, turn and perform a series of actions. You can also select modes and steer the robot using an infra-red TV controller, and it detects and interacts with moving objects placed in front of it. Have a look at the video clip on the right for a taste of what it can do and judge its potential.

With most forms of walking robots it is important that the design is as light as possible and well balanced in terms of its centre of gravity. If the robot is too heavy it will struggle to get off the ground and consume a lot of battery power, and if it is not balanced it will tend to rock badly when walking and turning. I decided to make this design very symmetrical, such that it can walk in all four directions with equal ease.

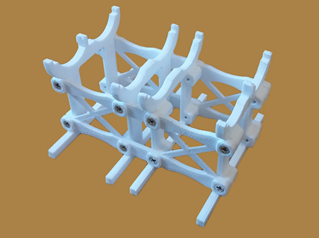

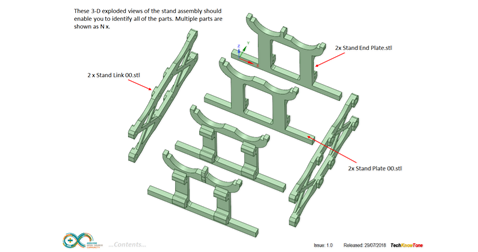

Cable management is another thing to consider when making a small robot, as servo motor leads are deliberately long for use in model aeroplanes, so it can be quite tricky trying to effectively lose them within the design, without them appearing untidy. The design of a simple stand is also included, which is just sufficient to raise the robot a few millimetres off the ground, making it ideal for testing in a safe low power mode.

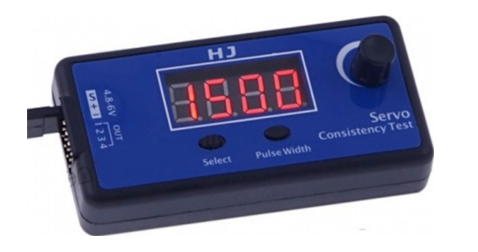

Calibration of each servo motor is key to robot performance and I’ve tried to make this straightforward for you. When building your robot you use a servo tester, which are simple to use, cheap to buy and very useful for other projects involving servo motors.

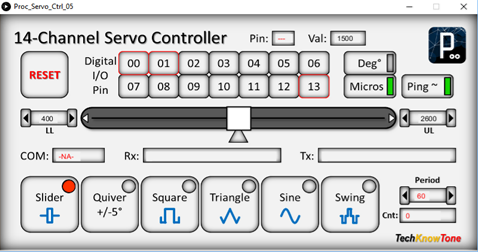

Then once you have built and wired up your robot you can complete the calibration process using a Windows based app I have written and given you for free. This tool is not only a great aid for this project, you can use it in other Arduino based projects too. You simply determine the servo angles and limits, then amend them in the code as shown. Your robot will then perform in exactly the same way as mine. If you can’t run the app then you can still use the servo tester for this part too.

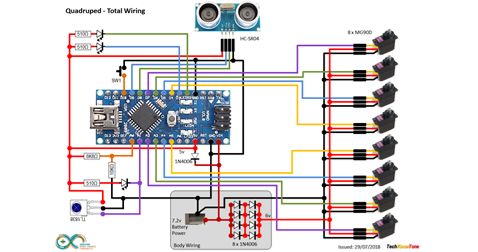

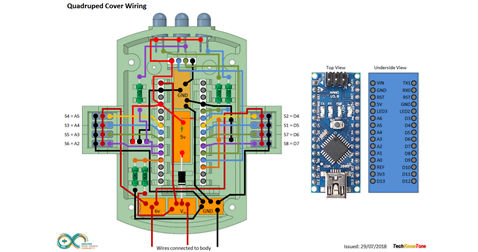

The circuit diagram is shown here on the left, with the Arduino NANO connected to the eight servo motors on the right, with 6v power being fed to the servos from a diode voltage dropping circuit. Servos will normally operate between 4.8v and 6v, but they work much better at the higher voltage. Note that this circuit assumes an input voltage of 7.5v from a power plug or 7.2v from a 2 x 18650 Lithium rechargeable battery pack. These batteries work really well but you need to avoid those with built in circuit protection as they will current trip.

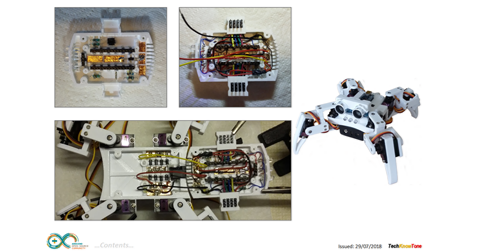

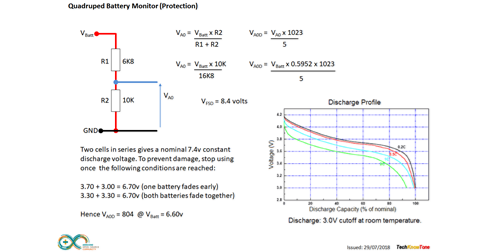

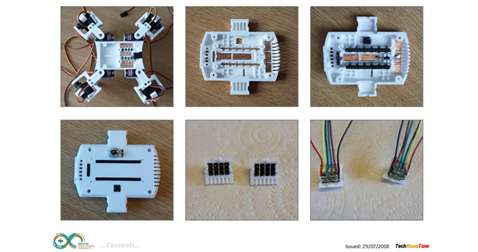

To avoid running the batteries flat and damaging them the Arduino code constantly checks the voltage and enters a safe mode should this occur. I’ve also included photos of how I wired mine up to help you with the wiring, which can be a little tricky if you are new to using a soldering iron.

All of the 3-D models are provided as STL files, zipped together into one file. They can therefore be used with a slicing application of your choice, to create the g-files for use with a 3-D printer. For my project I used Slic3r which is a free download from the internet.

I’ve also provided a pdf file showing you the names of each component and the quantities you need to print of each. The design is essentially held together using 2mm self-tapping screws, making it strong and rigid, whilst still being able to take it apart should you need to changed a component. The legs are easily removed and replaced, so you could play around with different designs, rubber pads to offer more grip, or even attach wheels.


Design Files
The following files can be downloaded to help you complete this project. Each has a hyper-link and an associated description. Depending on how your web browser is configured the links will either open the files directly into the browser or offer them as downloads.

Circuit Diagram - a drawing of what is seen in the view above, plus veroboard wiring. Use it as a guide to wiring up your project.
Parts list - the things you will need and budget prices.
3-D Models - a zip file containing all of the STL files, which you can use with a slicer application.

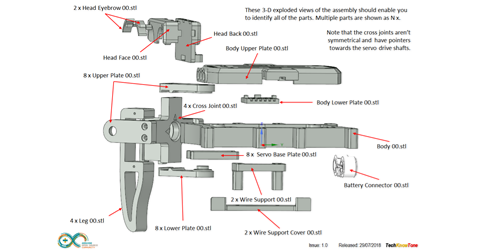

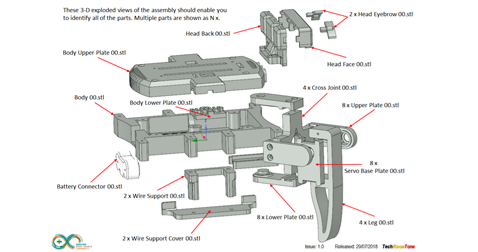

3-D Parts - a pdf file which identifies the 3-D parts, and the quantities of each you will need to print.
Software Code - the all important Arduino .ino file which runs the project and ‘Processing’ application. See comments below on coding.

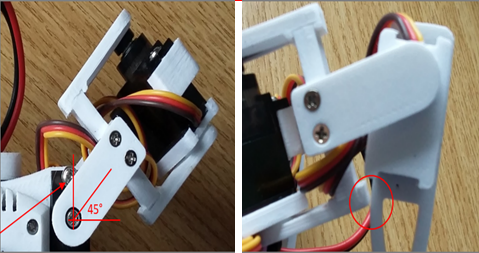

Calibration Record - shows the angles you need to determine and enter into your code to calibrate new servo motors.

This project relies on the use of two libraries, Servo.h and IRremote.h , which are included in the IDE set-up. These two libraries work reasonably well together, albeit you may get the occasional corrupt IR code when the robot is moving; so the code I have provided makes allowances for that.


Design Notes:

The following notes will help you understand how the files in this project work or can be used in principle. Each note has a bold heading for quick reference and they are listed in alphabetical order.

.ino File - when you download this file remember to place it in a folder with the same name, otherwise the Arduino IDE will not load it and display an error message.
3-D Models - this design is based on the use of 2mm self-tapping screws and 3mm nylon countersink screws. The models have 1mm pilot holes for the self-tapping screws, and 2.5mm pilot holes for the 3mm holes which need to be threaded with a M3 tap to secure the battery box.

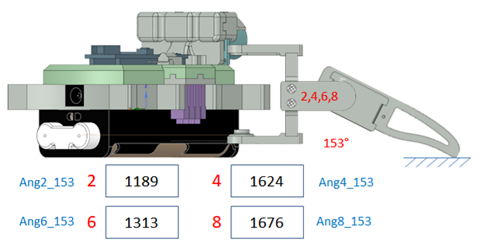

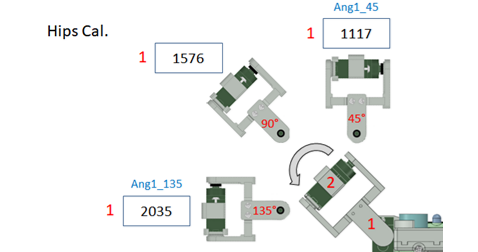

Calibration Record - It is essential that you undertake a calibration exercised in order to enter the correct values into your .ino file, as servo values can vary widely. Otherwise the robot will not function correctly and could even result in damage to one or more servo motors..

STL Model Files
- all models are designed to be printed on a 3-D printer with a .4mm nozzle. If you use a printer with a finer nozzle, say 0.3mm, then this may result in the height of the components being slightly less than intended, but I would still expected them to work..
